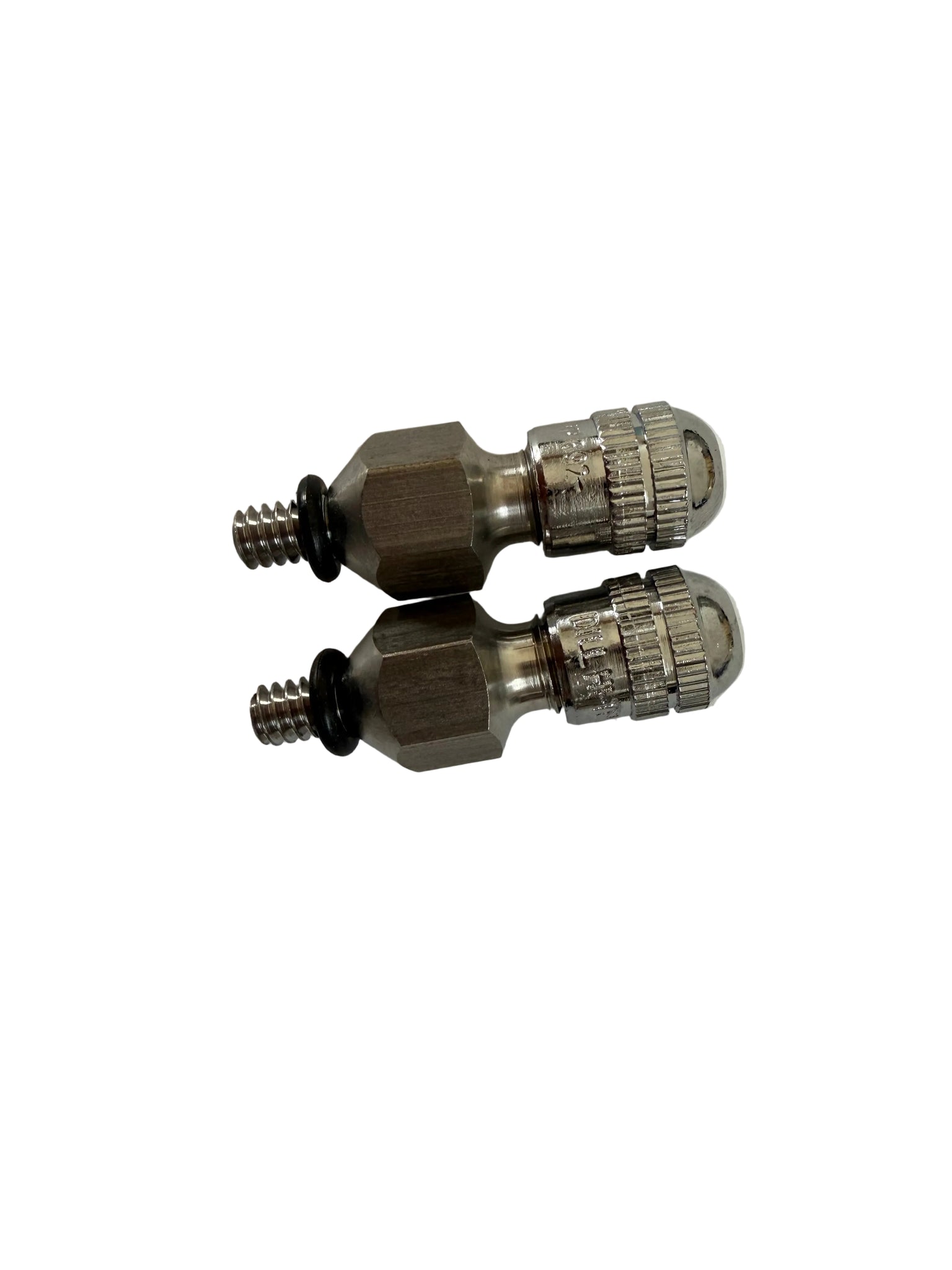

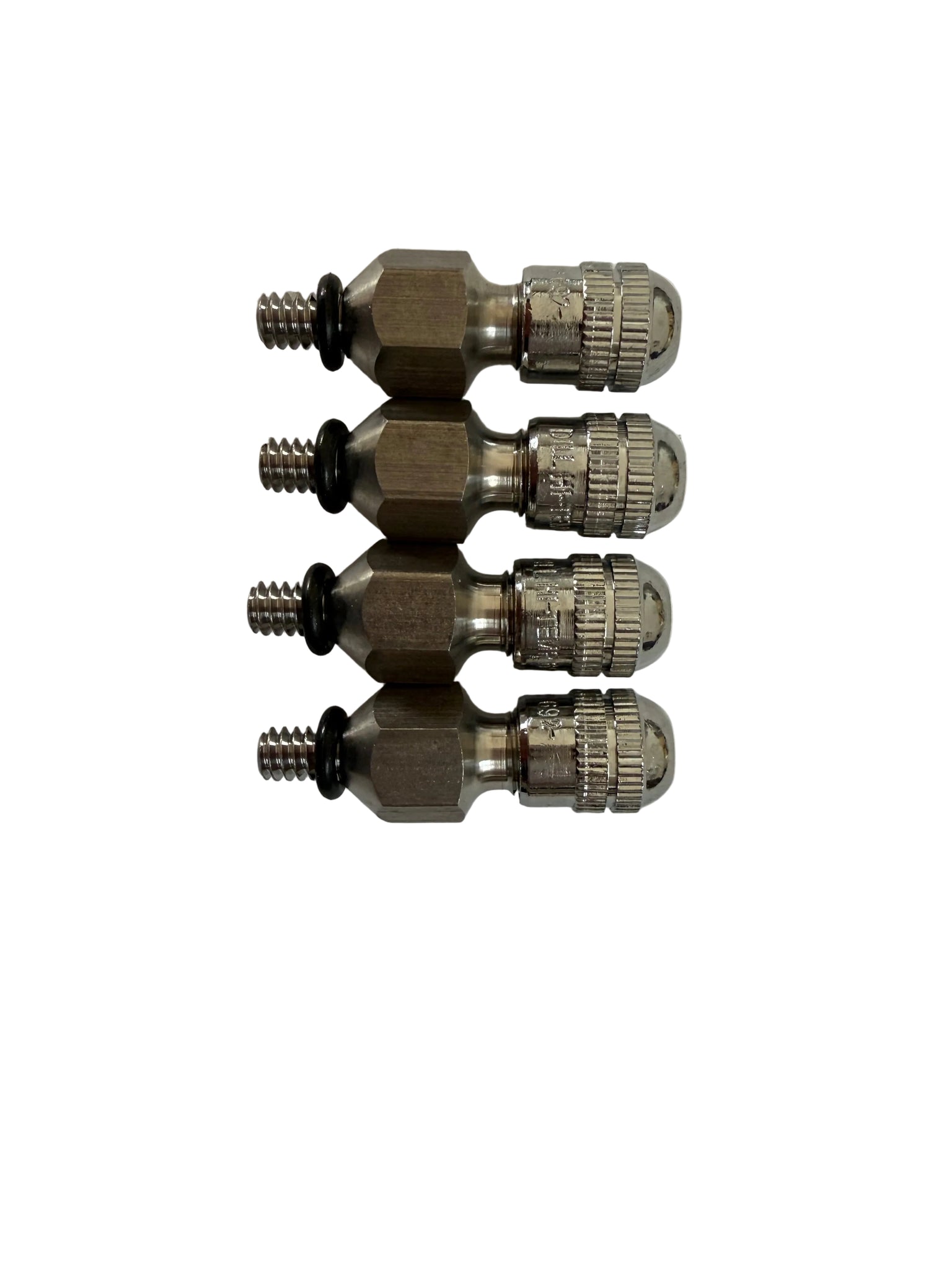

10-24 Schrader Valve Adapter Fox Performance and OE Series
Fits all KRX 1000's and H2 live valve shocks. We recommend starting at 150 psi nitrogen charge.

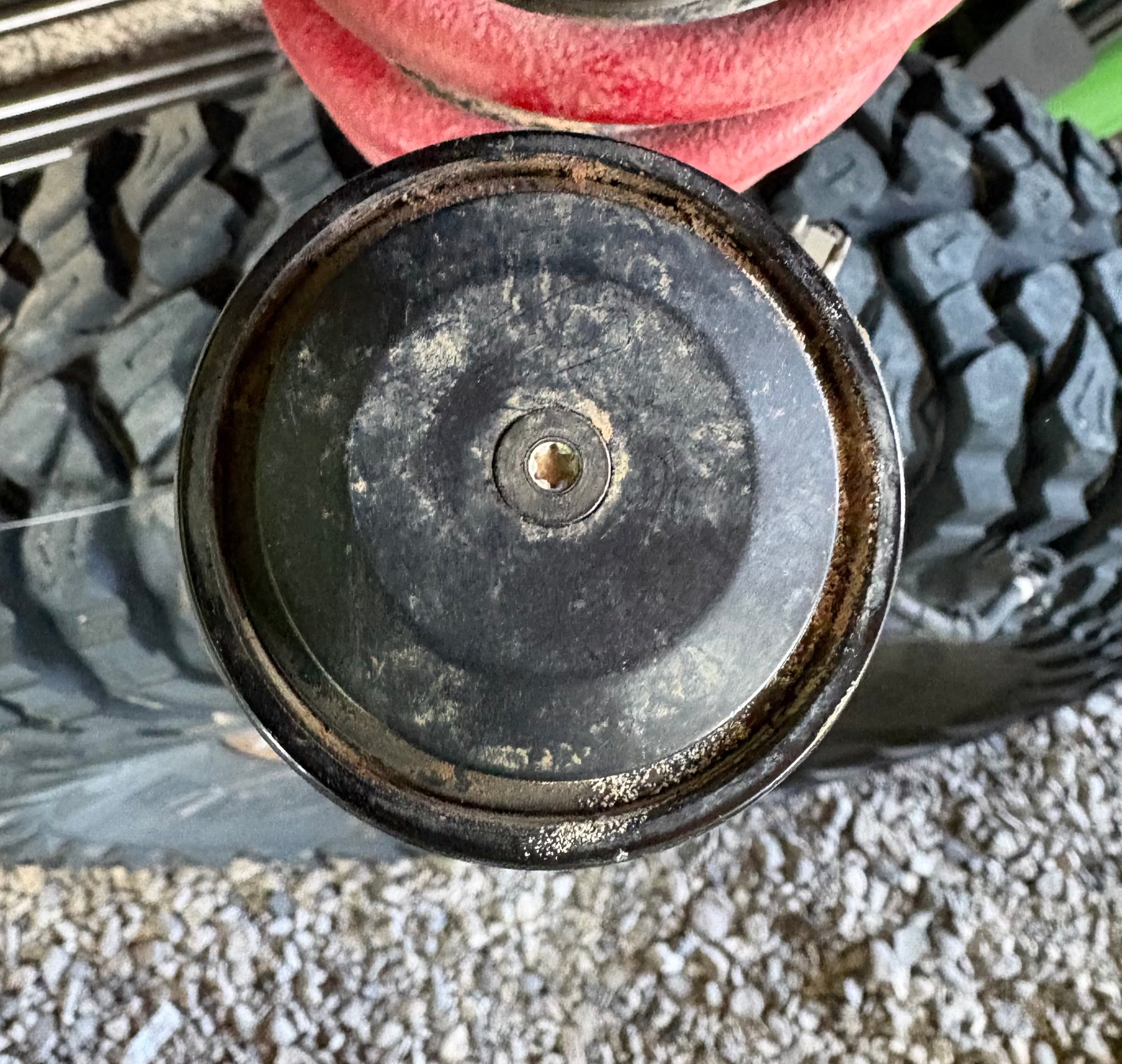

10-24 thread fits any fox body or resi end cap that is sealed with a 10-24 flat head socket screw charge port. If your resi caps have bolts in them, you simply remove the bolt and thread these in. No need to replace the reservoir caps or drill and tap them.
TORQUE TO 20 IN-LBS, DO NOT EXCEED 20-IN-LBS
Assembled with Dill high pressure DN302 core, Dill 692 high temp cap, buna o-ring, and 304 stainless steel body.
